How to install CLI and Create EKS Setup in AWS ?

How to install CLI and create an EKS Setup in AWS?

Prerequisites

• AWS account
• IAM user with AdministratorAccess (or specific EKS permissions)
• AWS CLI installed
• eksctl CLI installed
• kubectl installed

What is a CLI?

 To install aws client in Linux.

# sudo dnf install -y unzip curl

#  curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"

# unzip awscliv2.zip

# sudo ./aws/install

# /usr/local/bin/aws --version

# aws --version

To install aws client on Windows.

Download Binary: https://awscli.amazonaws.com/AWSCLIV2.msi

Install the downloaded binary (standard windows install)

# aws --version

# aws-cli/2.0.8 Python/3.7.5 Windows/10 botocore/2.0.0dev12

Configure AWS Command Line using Security Credentials

• Go to AWS Management Console --> Services --> IAM
• Select the IAM User: kalyan
• Important Note: Use only IAM user to generate Security Credentials. Never ever use Root User. (Highly not recommended)
• Click on Security credentials tab
• Click on Create access key
• Copy Access ID and Secret access key
• Go to command line and provide the required details

https://891377184357.signin.aws.amazon.com/console

Username: eks_cli_user

Password: uE43w1(i

# aws configure

AWS Access Key ID [None]: AKIA47CRYNZS7IG3VGGL  (Replace your creds when prompted)

AWS Secret Access Key [None]: dRPGiOSdkGYM1j9kFxo+8jfLVZVd2FVYxwlLgTNl  (Replace your creds when prompted)

Default region name [None]: us-east-1

Default output format [None]: json

# aws ec2 describe-vpcs



Test With STS

·       If this fails: credentials are invalid.

·       If this works but DescribeVpcs fails: it's a permission issue.

# aws sts get-caller-identity

{

    "UserId": "AIDA47CRYNZSYDGPZGY4F",

    "Account": "891377184357",

    "Arn": "arn:aws:iam::891377184357:user/eks_cli_user"



Get Error: An error occurred (AuthFailure) when calling the DescribeVpcs operation: AWS was not able to validate the provided access credentials.

Solution :-

Update the date & time

# date -s " Jun  4 01:08:52 PM IST 2025"

Install kubectl CLI

Install and configure kubectl

• Reference: https://docs.aws.amazon.com/eks/latest/userguide/install-kubectl.html

# Download the Package

mkdir kubectlbinary

cd kubectlbinary



curl -O https://s3.us-west-2.amazonaws.com/amazon-eks/1.33.0/2025-05-01/bin/linux/amd64/kubectl

chmod +x ./kubectl

mkdir -p $HOME/bin && cp ./kubectl $HOME/bin/kubectl && export PATH=$PATH:$HOME/bin

echo 'export PATH=$PATH:$HOME/bin' >> ~/.bash_profile

# kubectl version

or

# kubectl version --client

Install eksctl CLI

• Reference: https://docs.aws.amazon.com/eks/latest/userguide/eksctl.html#installing-eksctl

sudo dnf install -y curl tar

curl --silent --location "https://github.com/eksctl-io/eksctl/releases/latest/download/eksctl_Linux_amd64.tar.gz" -o eksctl.tar.gz

tar -xzf eksctl.tar.gz

sudo mv eksctl /usr/local/bin/

eksctl version

# eksctl create cluster --dry-run

 Step-01: Create EKS Cluster using eksctl

It will create an EKS control plane named eksdemo1 in region us-east-1 across two availability zones, without any node group (i.e., no worker nodes yet).

Default addons installed:

• metrics-server
• vpc-cni
• kube-proxy
• coredns

# Create Cluster

# eksctl create cluster --name=eksdemo1 --region=us-east-1 --zones=us-east-1a,us-east-1b  --without-nodegroup

# Get List of clusters

# eksctl get cluster

# kubectl get pods -A

# kubectl get svc

Step-02: Create & Associate IAM OIDC Provider for our EKS Cluster

OIDC Provider in EKS (OpenID Connect provider) is a way to connect AWS IAM roles with Kubernetes service accounts.

It works like a bridge that helps EKS (Kubernetes) know which AWS permissions to give to your pods or applications, in a secure way.

 # Replace with region & cluster name

# eksctl utils associate-iam-oidc-provider  --region us-east-1  --cluster eksdemo1  --approve

You can verify the OIDC provider:

AWS Console:

• Go to IAM > Identity providers

Step-03: Create EC2 Keypair

Create a new EC2 Keypair with name as kube-demo

Keypair à create key pair à key_name, pem à created.

Step-04: Create Node Group with additional Add-Ons in Public Subnets.

• This keypair we will use it when creating the EKS NodeGroup.
• This will help us to login to the EKS Worker Nodes using Terminal.

# Create Public Node Group

eksctl create nodegroup --cluster=eksdemo1 --region=us-east-1 --name=eksdemo1-ng-public1 --node-type=t3.medium --nodes=2 --nodes-min=2 --nodes-max=4 --node-volume-size=20 --ssh-access --ssh-public-key=kube-demo --managed --asg-access --external-dns-access --full-ecr-access --appmesh-access --alb-ingress-access



Flag	Description
--cluster=eksdemo1	Attach node group to this EKS cluster
--region=us-east-1	AWS region
--name=eksdemo1-ng-public1	Name of the node group
--node-type=t3.medium	EC2 instance type for nodes
--nodes=2	Desired number of nodes
--nodes-min=2	Minimum nodes in Auto Scaling Group
--nodes-max=4	Maximum nodes in Auto Scaling Group
--node-volume-size=20	Disk size in GB
--ssh-access	Enable SSH access to the nodes
--ssh-public-key=kube-demo	Name of EC2 Key Pair for SSH
--managed	Use AWS-managed node group
--asg-access	Grant permissions to access Auto Scaling groups
--external-dns-access	Allow ExternalDNS access
--full-ecr-access	Allow pulling from private ECR
--appmesh-access	Allow access to AWS App Mesh
--alb-ingress-access	Grant permissions for AWS ALB Ingress Controller

EKS VPC Architecture Summary.

1 VPC:-

vpc-0dccea06a79ddd613

4 subnets:-

subnet-0cca4006ecf153099 / eksctl-eksdemo1-cluster/SubnetPrivateUSEAST1A

subnet-0fb0b893dbbfd2f07 / eksctl-eksdemo1-cluster/SubnetPrivateUSEAST1B

subnet-0a96011b8050812f3 / eksctl-eksdemo1-cluster/SubnetPublicUSEAST1A

subnet-0a59c7c5420a06450 / eksctl-eksdemo1-cluster/SubnetPublicUSEAST1B

4 Route table:-

rtb-0c8ca76df9c6d548d / eksctl-eksdemo1-cluster/PublicRouteTable

rtb-015b4acfbefe82fdf / eksctl-eksdemo1-cluster/PrivateRouteTableUSEAST1A

rtb-03a34b8cd4ab4024f / eksctl-eksdemo1-cluster/PrivateRouteTableUSEAST1B

2 network connections

nat-0eefd9cc701314025 / eksctl-eksdemo1-cluster/NATGateway

igw-060f4dbebfe63ca83 / eksctl-eksdemo1-cluster/InternetGateway

2 nodes

2 nodes added with public subnet.

subnet-0a96011b8050812f3 / eksctl-eksdemo1-cluster/SubnetPublicUSEAST1A

subnet-0a59c7c5420a06450 / eksctl-eksdemo1-cluster/SubnetPublicUSEAST1B

i) Node à VPC à Public subnet à InternetGateway

ii) VPC à Private subnet à NATGateway

Elastic Ip

eksctl-eksdemo1-cluster/NATIP :- 52.200.147.88

Internet Gateway (IGW): igw-060f4dbebfe63ca83

➤ Ye public subnets ko direct internet access deta hai.

 NAT Gateway: nat-0eefd9cc701314025
➤ Private subnets ke liye outbound internet access deta hai (jaise image pull, updates).

Two public subnets:-

subnet-0a96011b8050812f3 / eksctl-eksdemo1-cluster/SubnetPublicUSEAST1A

subnet-0a59c7c5420a06450 / eksctl-eksdemo1-cluster/SubnetPublicUSEAST1B

Verify NodeGroup VPC subnets to confirm EC2 Instances are in the Public Subnet

• Verify the node group subnet to ensure it created in public subnets
• Go to Services -> EKS -> eksdemo -> eksdemo1-ng-public1
• Click on Associated subnet in Details tab
• Click on Route Table Tab.
• We should see that internet route via Internet Gateway (0.0.0.0/0 -> igw-xxxxxxxx)

Two Private subnets:-

subnet-0cca4006ecf153099 / eksctl-eksdemo1-cluster/SubnetPrivateUSEAST1A

subnet-0fb0b893dbbfd2f07 / eksctl-eksdemo1-cluster/SubnetPrivateUSEAST1B

Private subnets are not yet connected to anyone.

Verify Worker Node IAM Role and list of Policies.

• Go to Services -> EC2 -> Worker Nodes
• Click on IAM Role associated with EC2 Worker Nodes

Below, IAM policies are added to the EC2 worker nodes.

--asg-access	Grant permissions to access Auto Scaling groups
--external-dns-access	Allow ExternalDNS access
--full-ecr-access	Allow pulling from private ECR
--appmesh-access	Allow access to AWS App Mesh
--alb-ingress-access	Grant permissions for AWS ALB Ingress Controller

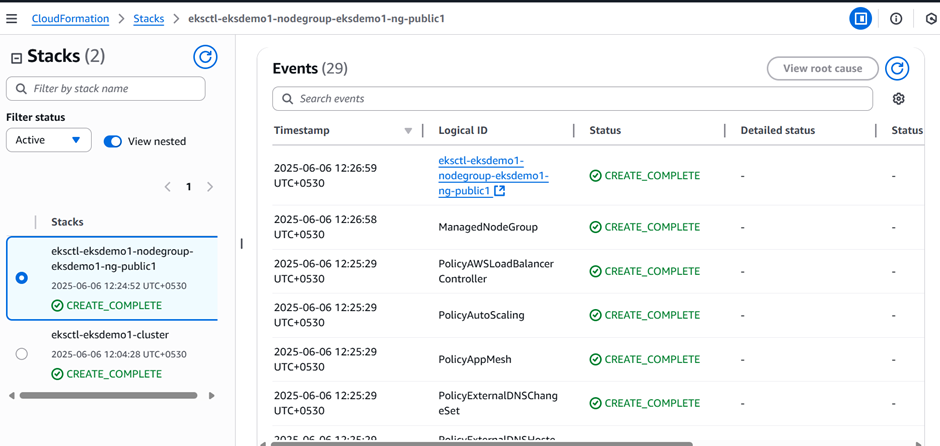

Verify CloudFormation Stacks

• CloudFormation creates the EKS cluster and stores all events.
• Verify Control Plane Stack & Events
• Verify NodeGroup Stack & Events

Verify the Security Group Associated to Worker Nodes

• Go to Services -> EC2 -> Worker Nodes
• Click on the Security Group associated with the EC2 Instance which contains remote in the name.
• If we have created a nodePort rule in EKS, then the inbound rule needs to be allowed in the worker nodes.

Remote_group à inbound rules à add.

All traffic – anywhere – 0.0.0.0/0

Verify Cluster, NodeGroup in EKS Management Console

# List EKS clusters

# eksctl get cluster

# List NodeGroups in a cluster

eksctl get nodegroup --cluster=<clusterName>

# eksctl get nodegroup --cluster=eksdemo1

# List Nodes in current kubernetes cluster

# kubectl get nodes

# kubectl get nodes -o wide

# kubectl get pods -A

# kubectl get daemonset aws-node -n kube-system

# Our kubectl context should be automatically changed to new cluster

kubectl config view --minify

Login to Worker Node using Keypai kube-demo

• Login to worker node

# For MAC or Linux or Windows10

ssh -i kube-demo.pem ec2-user@<Public-IP-of-Worker-Node>

internet working.

Delete EKS Cluster & Node Groups

Step-01: Delete Node Group

# List EKS Clusters

eksctl get clusters

# Capture Node Group name

eksctl get nodegroup --cluster=<clusterName>

eksctl get nodegroup --cluster=eksdemo1



# Delete Node Group

eksctl delete nodegroup --cluster=<clusterName> --name=<nodegroupName>

eksctl delete nodegroup --cluster=eksdemo1 --name=eksdemo1-ng-public1

Step-02: Delete Cluster

# Delete Cluster

eksctl delete cluster <clusterName>

eksctl delete cluster eksdemo1
