Aws Elastic Load Balancers :-
ELB is a load balancing service by AWS, which Distributes incoming traffic across several targets, such as amazon EC2 instances, Lambada functions, containers and range of IP addresses, in multiple Availability Zones.
Benefits of ELB .
1. Automatically scales to meet the incoming traffic.
2. Increases availability and fault tolerance of applications.
3. Improves overall performance of applications.
4. Regular health checks, to send only to healthy targets.
Application Load balancers :-
- It
is operated at Layer 7 of the OSI Model.
- It
is best suited for load balancing of HTTP and HTTPs traffic.
- It
identifies the incoming traffic and forwards it to the right resources.
For example, if a URL has /API extensions, then it is routed
to the appropriate application resources.
Network Load balancer :-
·
It is operated at the Layer 4 of the OSI model.
- It makes routing
decisions at the transport layer (TCP/TLS/UDP), and it can handle millions
of requests per second.
- When a load
balancer receives a connection, it then selects a target from the target
group by using a flow hash routing algorithm. It opens the TCP connection
to the selected target of the port and forwards the request without
modifying the headers.
- It is best
suited for load balancing the TCP traffic when high performance is
required.
Classic Load Balancer :-
· It is
operated at Layer 4 of the OSI model.
- It routes the
traffic between clients and backend servers based on IP address.
What is
autoscaling?
Amazon EC2 Auto scaling ensures that you have enough EC2 instances available to handle the load for your application by launching or terminating Amazon EC2 automatically.
Benefits of autoscaling :-
1. Better
Fault Tolerance.
2. Better
Cost Management.
3. High
Availability.

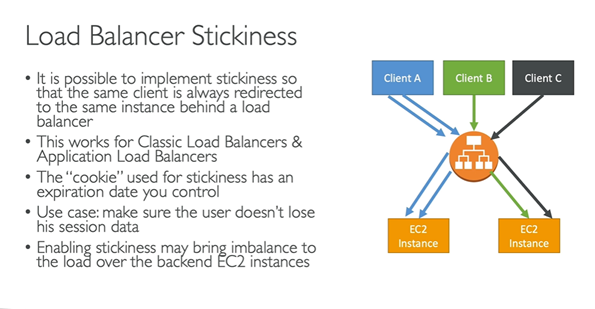

Elastic Load balancer – Stickiness

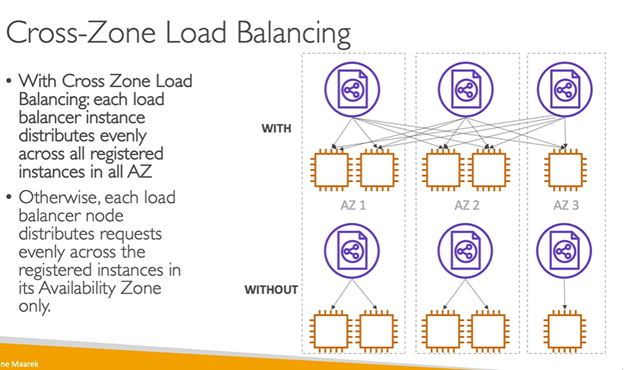

Cross-Zone load balancing.
